Ozone Reserve Angel V2
Ozone Reserve Angel V2 Round - Image 2
Ozone Reserve Angel V2 Round - Image 3
Ozone Reserve Angel V2
Ozone Reserve Angel V2 round - Image 2
Ozone Reserve Angel V2 round - Image 3

Ozone Reserve Angel V2 round

Price range: $595.00 through $750.00

Add to compare
Add to wishlist

Payment Methods:

Description

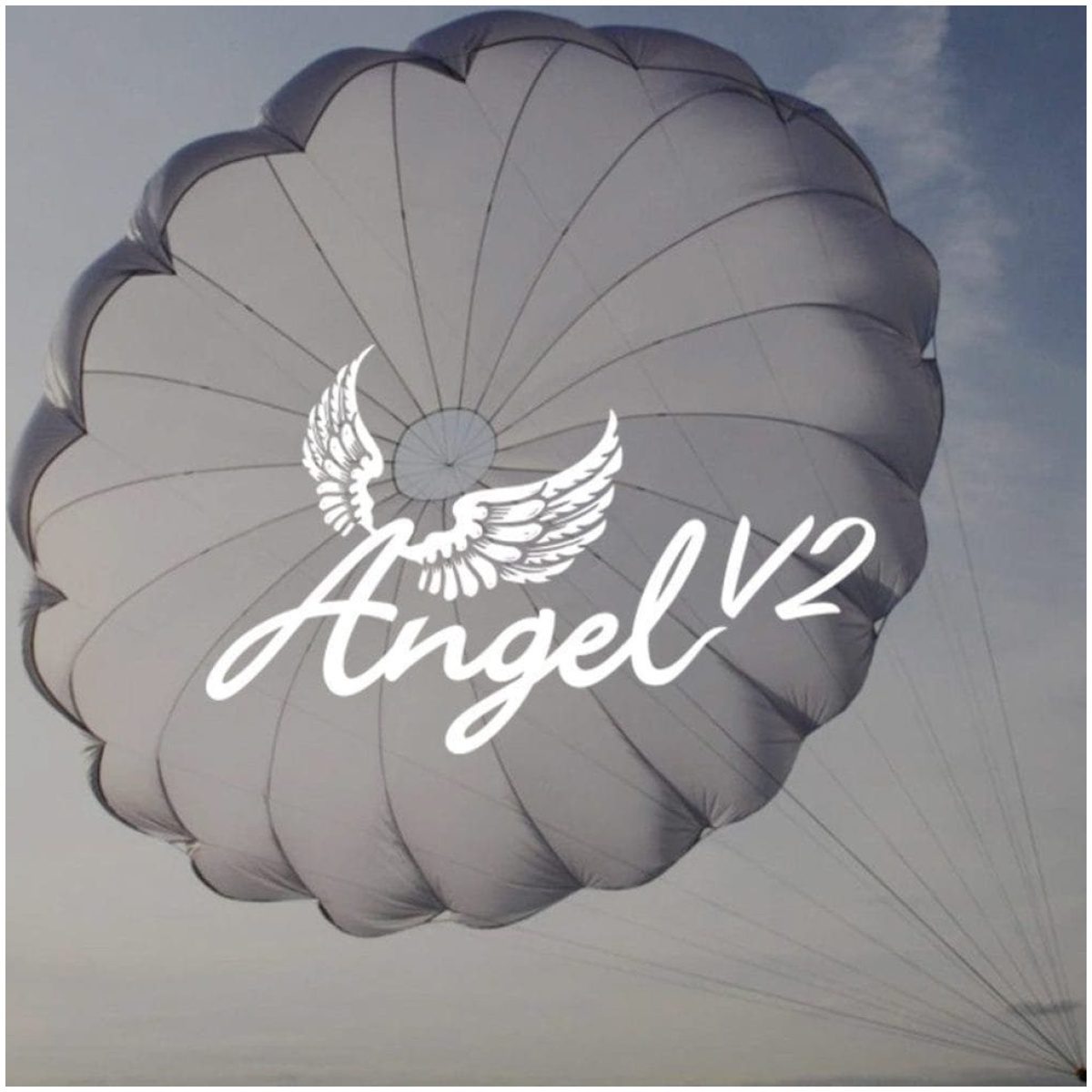

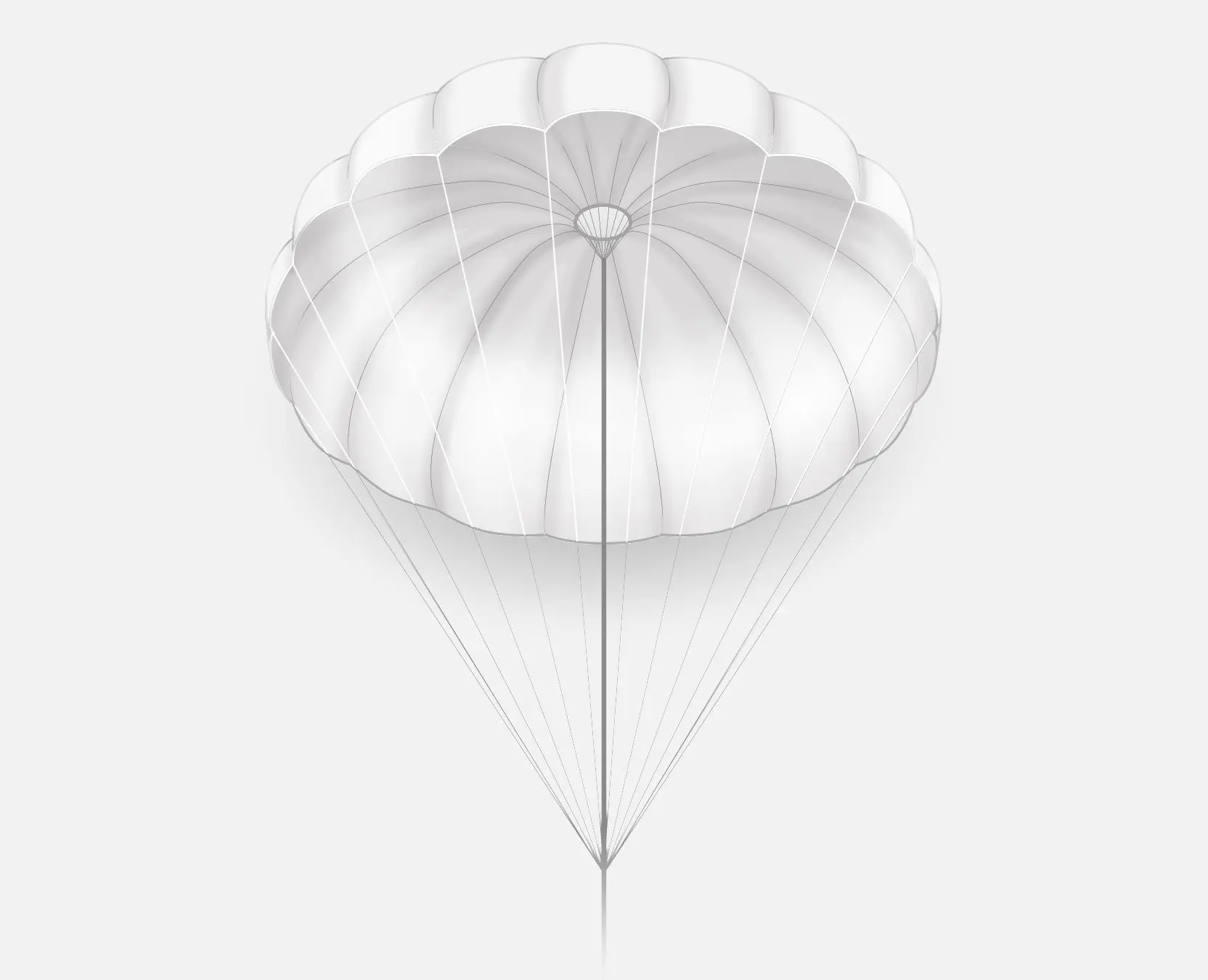

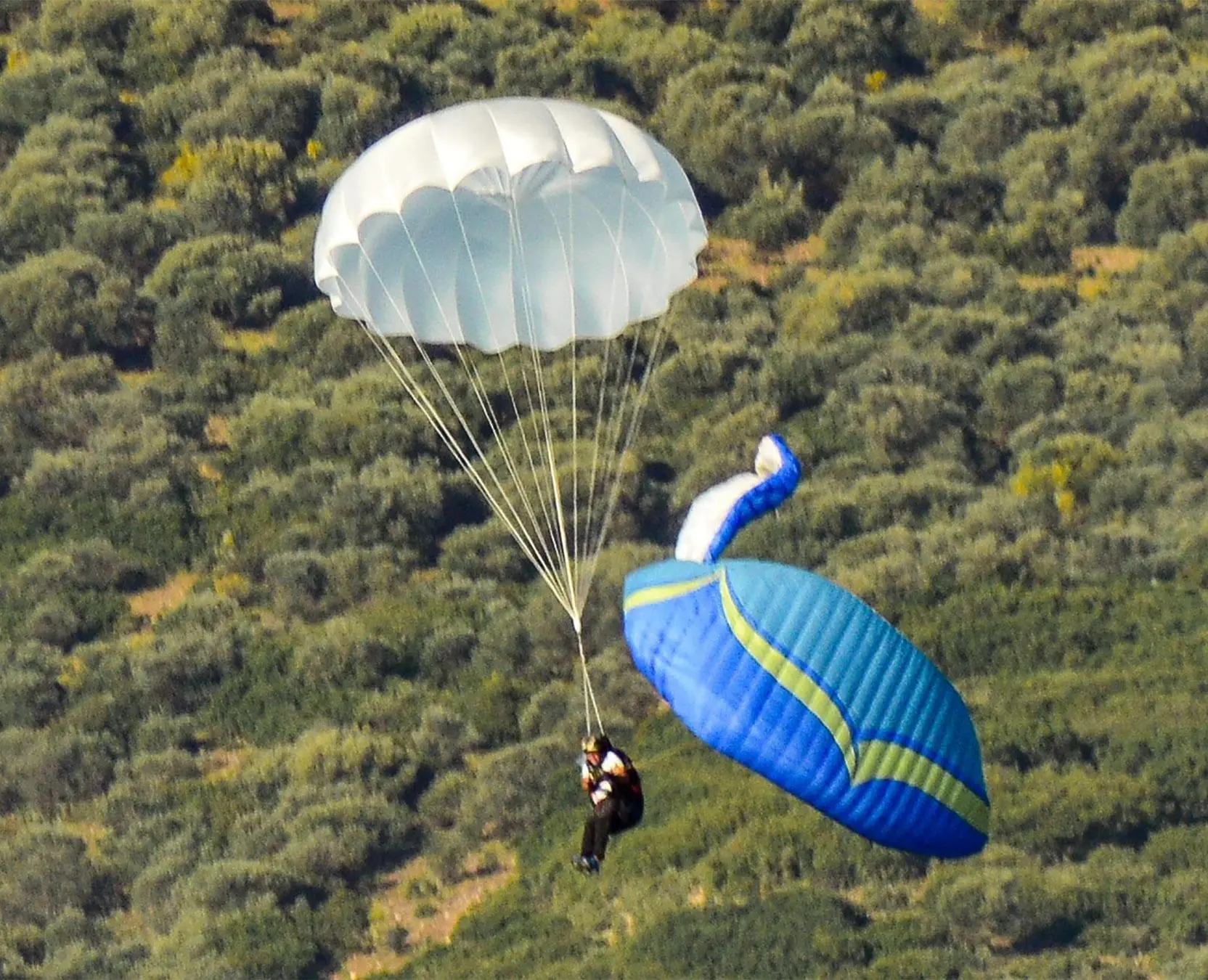

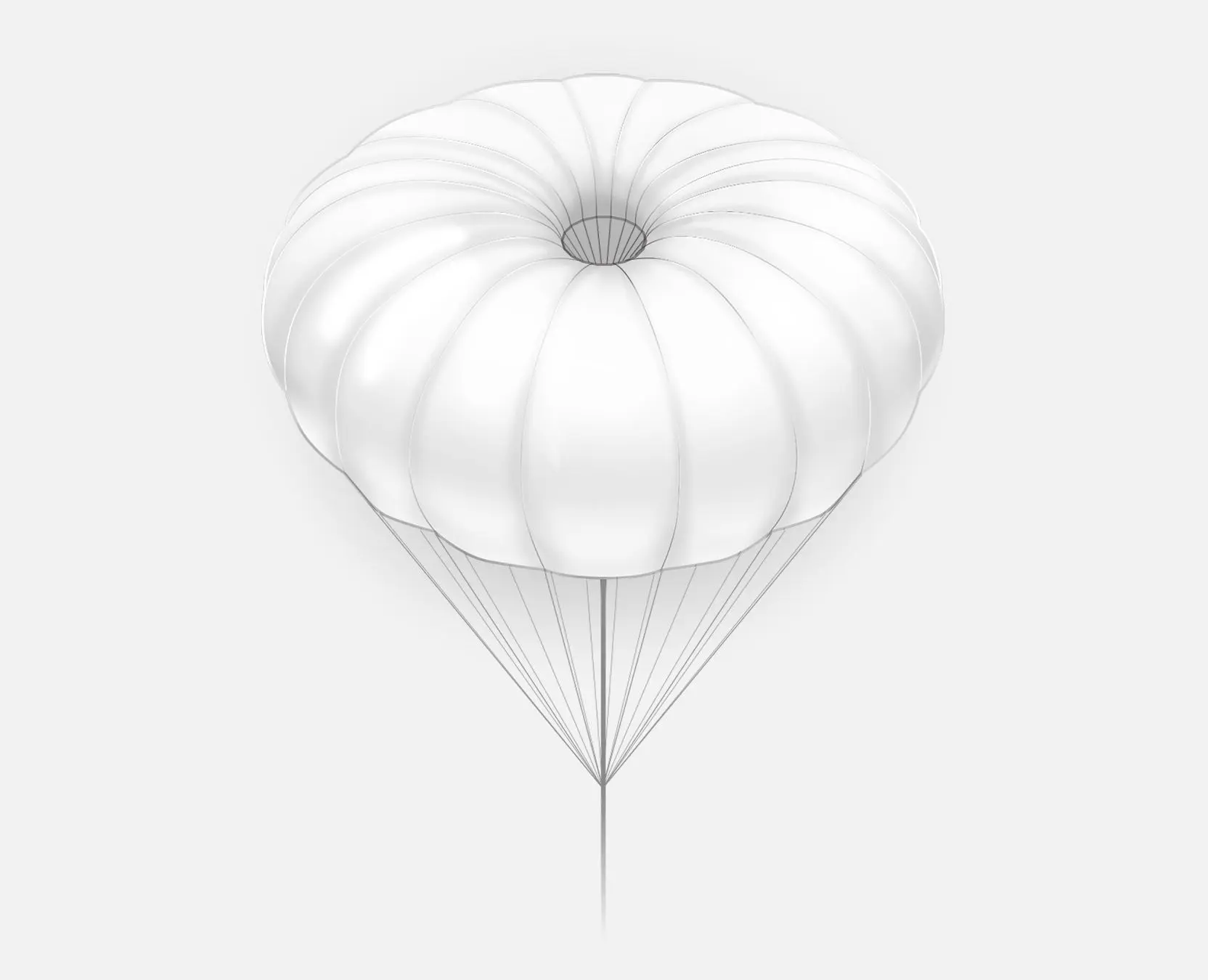

Ozone Reserve parachute Angel V2

Everyone needs an Angel… even though no one really wants to use theirs. However, the fact is that when the time comes, the most important factors are safety and stability with a low sink rate for a gentle and controlled descent. The Angel V2 140 is certified to 140kg, meaning that even a pilot with a total in-flight weight of 140kg will have a stable descent of near or less than the tested result of 5.24m/s, and most pilots will have a slower descent with this size. The high stability and low sink rate, coupled with its affordable price and light weight make it a safe and popular choice for pilots of all abilities.When it comes to stability and safety in round reserves, there is no substitute for surface area. For that reason, all sizes of the Angel are “big” in terms of surface, while still very light, and provide plenty of margin for the weight ranges they are certified to carry. In its three sizes, the Angel V2 covers all pilot weights up to 140kg (total suspended inflight weight, including reserve). It is certified EN and LTF to the EN 12491 and LTF 91/09 standards. The Angel is available in 2 bridle options: Y bridle (for harnesses with no bridles) and Short Bridle (for harnesses with integrated bridles).Although light, the Angel has been fully optimised for safety and reliability rather than weight. When it comes to parachute construction, weight saving often compromises safety – for example thinner, lighter line sets can and do fail in certain deployment configurations due to friction cuts. The Angel’s polyamide lines are burn resistant to 200 C, while some other lightweight parachute lines are made from Dyneema and are only resistant to 80 C. This is an important distinction and we recommend that pilots educate themselves about the ultralight equipment that they use. Polyamide lines are far superior due to their elongation properties and burn resistance. The Angel’s materials have been chosen for optimum durability and damage-resistance for a greater margin of safety, even in the most extreme situations.

RESERVE CONTAINER GUIDE

Reserve Container Guide

SPECIFICATIONS

Size
90
110
140
Number of Gores
18
18
20
Surface Area m2
25
29
37
Apex lines Length mm
5920
6505
7310
Suspension Line lengths mm
5505
6050
6800
Upper Apex lines
640
700
790
Weight kg, incl. bridle
1.36
1.56
1.90
Certified Maximum load Kgs
90
110
140
Sink rate at Max Load m/st
5.2
5.2
5.24
Certification
EN & LTF
EN & LTF
EN & LTF
* Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.

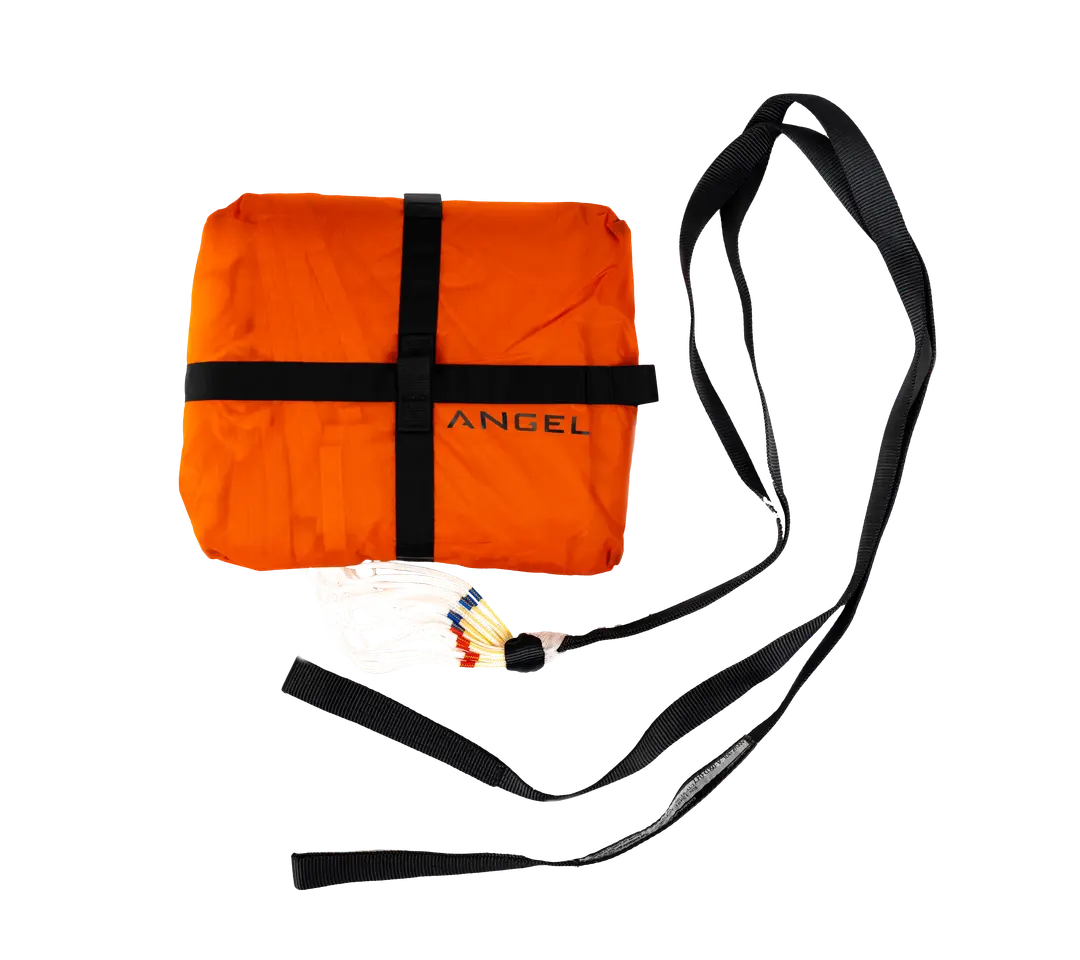

Bridle configuration: The Angel’s Y bridle (1.4m) attaches directly to the shoulder attachment points of your harness. No maillons are included (your harness will need to be fitted with 2 square or trapezoidal maillons, one for each shoulder attachment point). For more info please see the user manual.

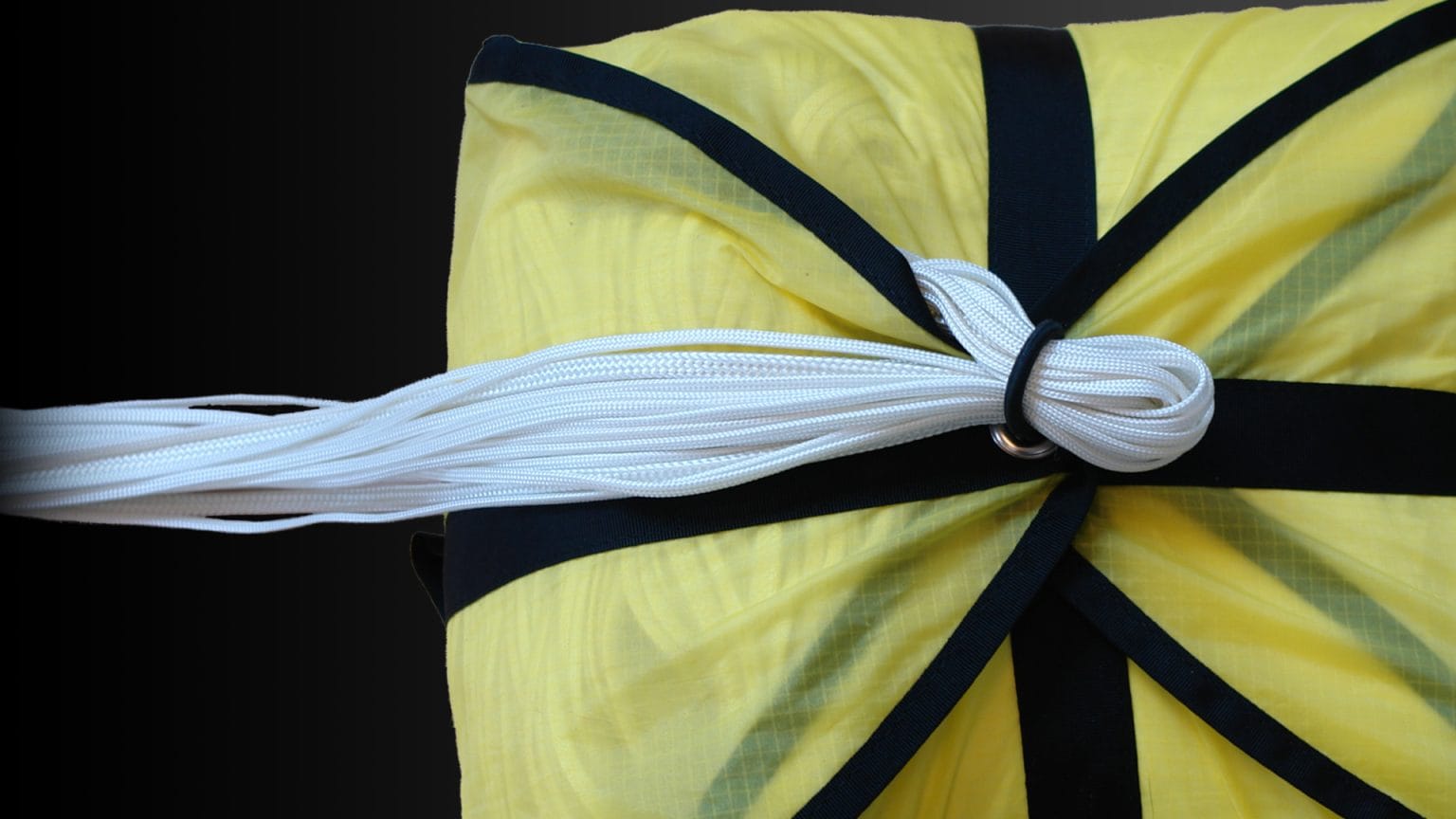

INNER POCKET

Standard clover leaf style.

SIZES

Up to 90kg/110kg/140kg

OPENING TIME

2.8 seconds

MATERIALS

  • Cloth: RSQ20D
  • Lines: Edelrid A6798
  • Risers: Gurth and Wolf 25mm

Downloads

Specification

Overview

Weight 6 lbs
Size

,

,
