BGD Adam Spot Paraglider

BGD Adam Spot Paraglider EN/LTF-A

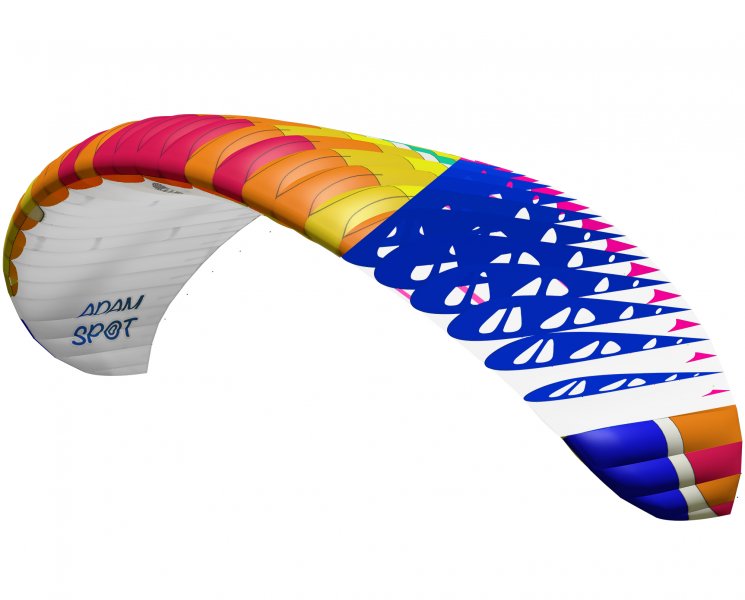

Easy, safe and controllable, the Adam Spot is our dedicated accuracy wing.

• Excellent Controllability
• Exceptional Roll Stability
• BGD Feedback
• Impeccable Spiral Behaviour
• Predictable Deep Stall

Specs

Color

Adam Spot

Info

The Adam Spot is an EN / LTF-A wing, derived from the original Adam school wing. Its superb handling and great controllability make it ideal for accuracy flying, and the slow-speed behaviour is excellent. You can brake it to near the stall point, and it will descend as if in a parachutal stall. It is very controllable and easy to play around, going in and out of the parachutal zone with ease.

The Adam Spot is the choice of accuracy champions, and always well represented in the top scores at competitions. Current Paragliding Accuracy World Champion Yang Chen says: “The Adam is safe, stable, and with excellent handling. It is a master of all kinds of accuracy landing techniques – swoop landing, vertical landing, on-route landing etc, it helps in every way so that you can aim right on the target. This is my feeling and my comment on the Adam after over 30,000 take-offs and landings, flying more than a dozen of Adams”.

Tech

Baby A-riser

We have added a ‘big ears’ A riser which is also on a ½ ratio with the rest of the A lines. This facilitates easy use of big ears while helping speed and stability while on bar. The speed system is light and simple without reflex really helping glide at speed.

Chord Cut Billow (CCB)

Chord Cut Billow technology has been developed to improve the form friction, glider stability and overall performance of our paragliders. Two seams run chord-wise across the top panels of the leading edge. They accommodate the panel ballooning that happens when the wing is inflated. Without CCB, up to five centimetres of excess material is created on the sides of an inflated flat panel when it bends over a wing profile. This results in wrinkles. Chord Cut Billow technology removes this excess material and the 3D panel has fewer ripples and improved rib profile shape and stability.

Excellent Controllability

The slow-speed behaviour is excellent. You can brake to near the stall point, and it will descend as if in a parachutal stall. It is very controllable and easy to play around, going in and out of the parachutal zone with ease.

Elliptical Cell Openings

We have found that elliptical cell openings give better lower surface tension making for smoother inflation, and re-inflation after collapses.

Exceptional Roll Stability

Designed for progressing pilots this glider has outstanding roll stability. Paragliders are inherently unstable on the ground, added roll stability makes the glider easier to launch and more comfortable in the air.

BGD Feedback

Gliders that talk are safer. Safer gliders make pilots perform better. Better performing pilots fly further. Further flying pilots are happier pilots. BGD Feedback produces happier pilots!

Impeccable Spiral Behaviour

The spiral behaviour is astounding – spiral stability can be a problem with low aspect-ratio beginner wings, but we have tested the paraglider extensively, with different inclinations and sink rates, and never, ever has it stayed in a spiral, once! This is very unusual for a school glider and is a big safety bonus.

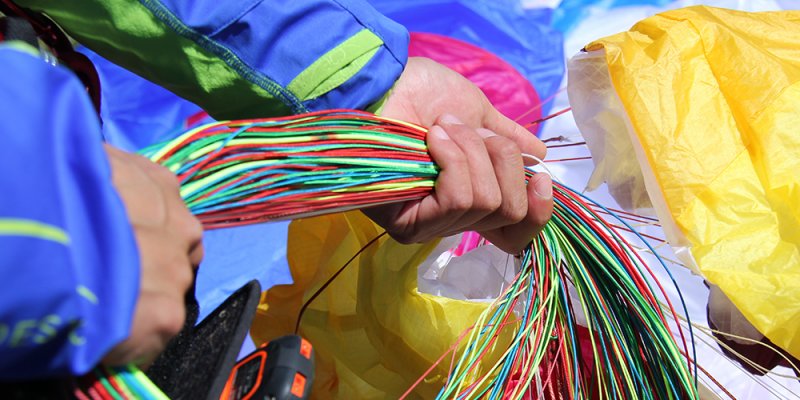

Integrated Line Layout

The line layout of our gliders is fully integrated into the wing design. Sail and lines are designed together, holistically. The cell widths and the internal straps that transfer the load though the sail are all designed according to the line layout. Even the panel shaping is matched with the line layout through detailed CAD simulation. The result is simple: fewer lines and stronger, faster, safer gliders.

Progressive Stability

Using our Parasim simulation program, BGD gliders are designed to have a stable and solid centre with progressively softer tips. This teaches pilots to predict and avoid deflations and stay aware of the air.

Predictable Deep Stall

The Adam spot has a long, predictable brake range that progressively ramps up to deep stall and full stall giving it the competitive edge during competitions.

Snap Locks

BGD developed the first snaplocks for paragliding with Fidlock a decade ago. They have been refined and improved over the years and have now been widely adopted in the industry. A small focused magnet inside the catch with an internal locking system holds the handles in place. They release only when the handles are pulled down towards the pilot, so they don’t fall off while kiting, packing, or performing manoeuvres.

Weight-optimised ribs

We have maintained the strength and rigidity of the ribs while removing unnecessary material. This means less weight for no increase in cost or reduction in strength of the wing. The hole positioning and size depends on the loads taken locally by the sail, and it is thanks to recent developments in our software that it is now possible to accurately calculate this.

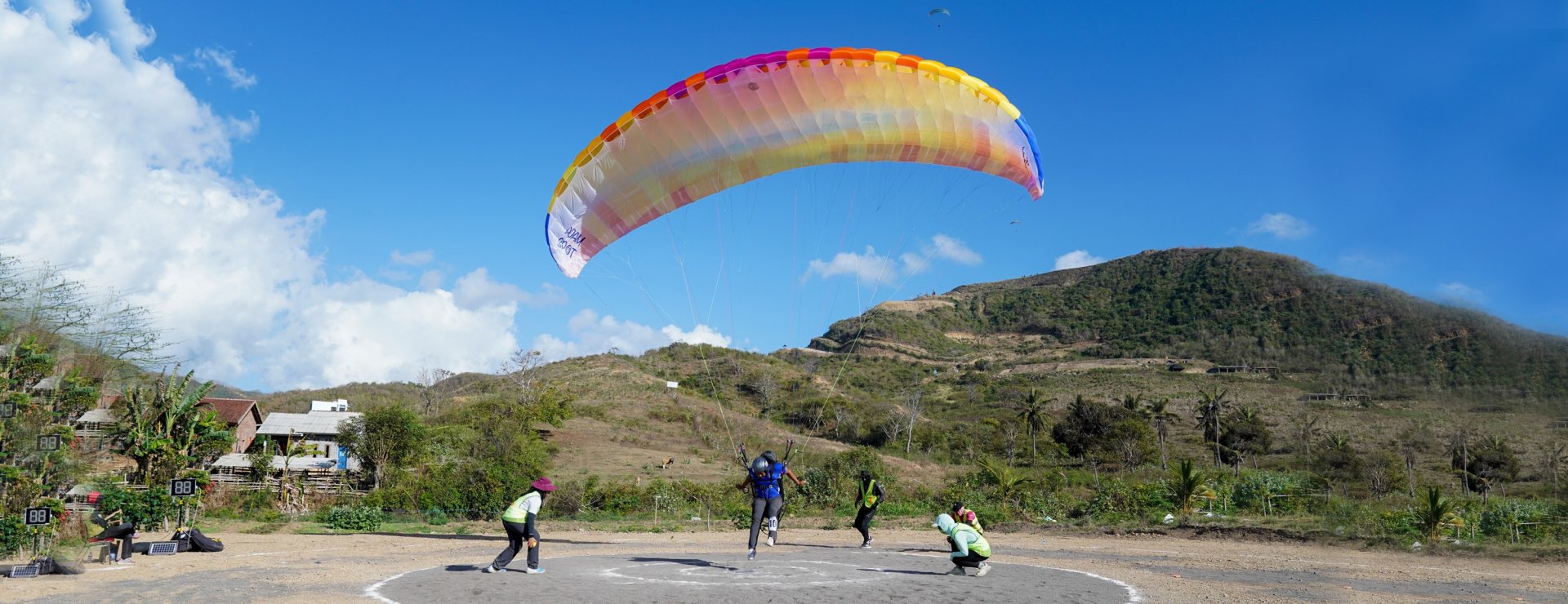

Target

The target is the target! The Adam Spot is our specialised accuracy wing, for competitive pilots to hit the spot, time after time. It is very safe and uber controllable. As flown by Accuracy World Champion Chen Yang, who was the inspiration behind it.

Designer’s notes

The Adam Spot is the original Adam, with a new colourful suit but the same ease of use and safety. The original Adam’s brief was “safe enough for your children to fly” and it is indeed the wing Bruce’s children learned to fly on. It launches really easily, flies responsively and has the highest safety rating available. It was the first of BGD’s wings to have mini ribs on the trailing edge. Normally, large-celled paragliders without mini-ribs have a lot of billow near the trailing edge and around the brake fold. When this billow is folded down with a brake input everything gets pulled out of shape. Mini-ribs reduce the billow around the brake fold creating more responsive brake input and a cleaner brake fold. Spot-landing pro’s use this to their advantage, to land straight onto the spot, every time.

Flying Level / Style

Package includes

Paraglider / Compression strap / Riser bag / Inner bag / Rucksack / Repair cloth / BGD stickers / BGD gift / Manual card

Material

Download

Line Layout

Manual v2

S

S Certificate

S Flight test report

S Line Lengths S

M

M Certificate

M Flight test report M

M Line lengths

ML

ML Certificate

ML Line lengths ML

L

L Certificate

L Line lengths L
