Advance ALPHA 7
$4,000.00
Advance ALPHA 7 ENTRY LEVEL PARAGLIDER COME FLY WITH ME
Spread your wings like a bird, step lightly into the air and simply fly away: the ALPHA 7 is your perfect partner for making this a reality. The latest technology combined with the highest quality materials ensure your pleasure and safety while you learn, and for long afterward. Maximum flying fun guaranteed. Now available at your ADVANCE Dealer.
- EASY
- SAFE
- LONG LASTING
TECHNICAL DATA
| ALPHA 7 | 22 | 24 | 26 | 28 | 31 | |
|---|---|---|---|---|---|---|
| Flat surface | m2 | 22.1 | 24.0 | 26.1 | 28.5 | 31.9 |
| Projected surface | m2 | 19.2 | 20.8 | 22.4 | 24.4 | 27.4 |
| Recommended takeoff weight | kg | 50-70 | 60-80 | 70-95 | 85-110 | 100-130 |
| Increased takeoff weight | kg | 70-85 | 80-95 | 95-110 | 110-125 | 130-145 |
| Glider weight | kg | 4.2 | 4.5 | 4.75 | 5.15 | 5.7 |
| Span | m | 10.4 | 10.8 | 11.3 | 11.8 | 12.5 |
| Projected span | m | 8.4 | 8.7 | 9.0 | 9.4 | 9.9 |
| Aspect ratio | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | |
| Projected aspect ratio | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | |
| Max. chord | m | 2.66 | 2.77 | 2.89 | 3.02 | 3.19 |
| Number of cells | 38 | 38 | 38 | 38 | 38 | |
| Number of risers | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | |
| Certification Recommended takeoff weight | EN/LTF A | EN/LTF A | EN/LTF A | EN/LTF A | EN/LTF A | |
| Certification increased takeoff weight | EN/LTF A | EN/LTF A | EN/LTF A | EN/LTF A | EN/LTF A |
¹ RTW: Recommended takeoff weight, in kilograms.
² ITW: Increased takeoff weight, in kilograms.
FREE FLIGHT WEIGHT RANGES
The ALPHA 7 is available in five sizes 22, 24, 26, 28, and 31 and, like its predecessor, each size of the ALPHA 7 has an extended weight range of 15 kg. This increases the range of use in schools. The glider can also be flown in a dynamic range within the LTF/EN A classification, e.g. for acro beginners who want to get an early start on basic maneuvers.

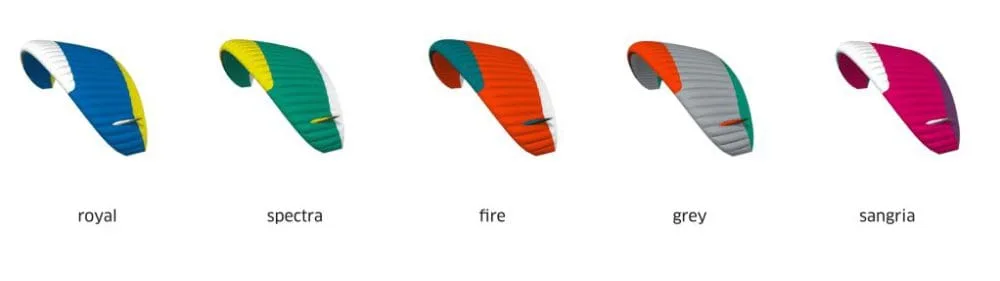

COLOURS
Standard colors: Royal, Spectra, Fire, Grey, Sangria.
PARAMOTOR WEIGHT RANGES
MATERIALS
| Leading edge | Skytex 38 universal, 39 g/m2 |
|---|---|
| Designstripe | Skytex 38 universal, 39 g/m2 |
| Profiles | Skytex 40 hard finish, 40 g/m2 |
| Main lines | A-6843-370, -280, -230, -180, -140 |
| Brake lines | DSL 070, DFL 115 |
| Risers | Polyester 22mm, 1200daN |
| Upper surface | Skytex 38 universal, 39 g/m2 |
| Lower surface | Skytex Easyfly, 40 g/m2 |
| Unsuspended profiles | Skytex 40 hard finish, 40 g/m2 |
| Galery lines | A-6843-140, DSL 070 |
| Steering lines | A-7850-240 |
| Quick links | MR Delta 3.5mm / S22 |
PARAMOTOR RISERS
Its exceptional take-off a character and pronounced damping in all aces make the ALPHA 7 ideally suited to paramotor flying. All sizes have DGAC paramotor certification. Paramotor risers with trimmers are available as an option, and the trimmers can be stowed away in the main carabiners for free flight.
TRIMMERS IN USE
The hybrid risers are equipped with trimmers. This allows the torque of the engine to be balanced and the cruising speed to be adjusted in flight.
DETAILS
- Provided that it is equipped with the Hybrid-Risers appropriate to the ALPHA 7 has EN / LTF certification as a paraglider.
- Sizes 22, 24, 26, 28, and 31 have DGAC certification for motor flying.
- Relevant certified weight ranges are 50-120 kg (size 22), 60-135 kg (size 24), 70-155 kg (size 26), 85-180 kg (size 28) and 100-210 kg (size 31).
- More information and technical data you can find in the manual (see downloads).
TRIMMERS STOWED
For flying without a motor, the trimmers must be hooked into the carabiner and fixed to maintain mountain flight certification. The hybrid risers also have a foot accelerator, which is used when flying without a motor.
ARTIKEL NR.
PACKAGE
- COMFORT PACK 3
- COMPRESSBAG
- Repair Kit
- Mini Windsock
OPTIONAL EXTRAS
- Concertina packing bag
- Paramotor risers with trimmers
Additional information
| Weight | 6 lbs |
|---|---|
| Size | |
| Color |
