Advance ALPHA DLS

$4,000.00

📦 Order on Demand Item

This product is sourced and manufactured specifically for your order. Please read the following carefully before placing your order.

🕐 Lead / Manufacturing Time
• Standard lead time is 1 to 4 weeks depending on the brand's production schedule.
• If the brand has stock, delivery can be as quick as 4 to 7 business days.
• We will confirm your estimated timeline after your order is placed.
✏️ Size & Colour Changes
• Need to change size or colour? Contact us within 24 hours of placing your order.
• We will do our best to accommodate your request before manufacturing begins.
❌ Cancellation Policy
• Cancellation is only possible before manufacturing has started by the brand.
• Once manufacturing begins, the order cannot be cancelled under any circumstances.
Transaction fees charged by the payment processor are non-refundable in all cases, even prior to manufacturing.
Description

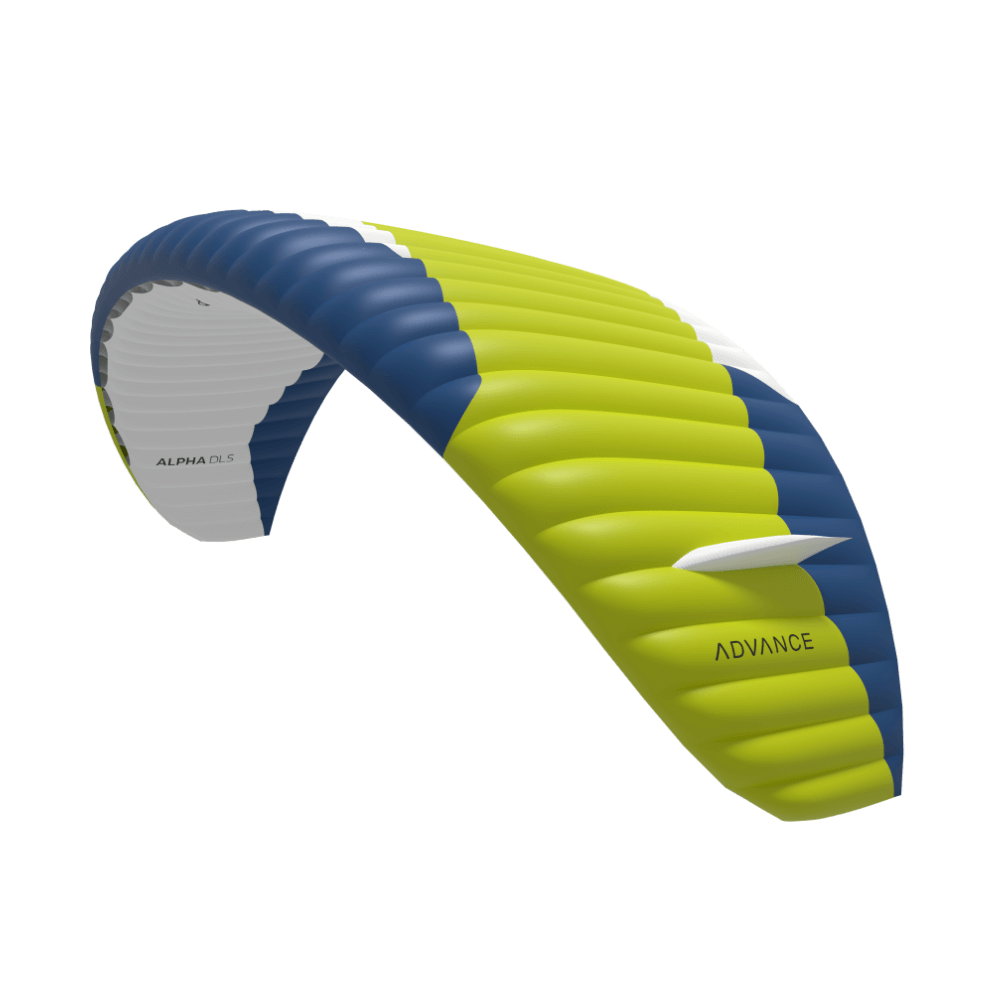

Advance ALPHA DLS Come fly with me Entry level light glider

The ALPHA DLS is the lightweight version of the classic entry-level wing. Thanks to its lightweight construction and further design optimizations, it is up to 800g lighter and offers even greater glide performance than the Classic version. This makes it the perfect choice for Hike & Fly, travel, and even your first cross-country flights.

Easy Lift off with ease

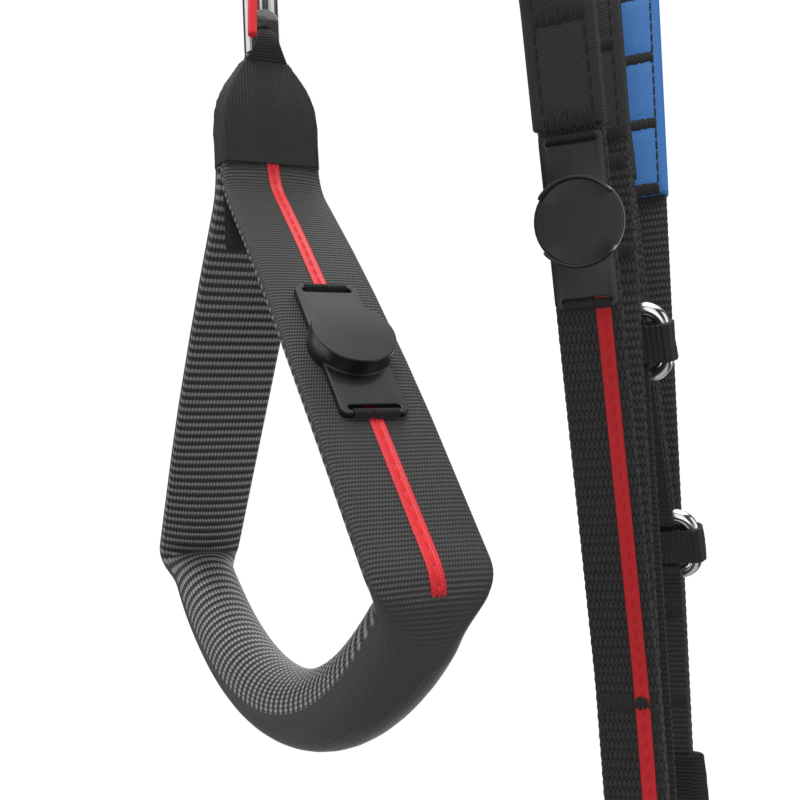

The ALPHA series stands out with its clear line setup and colour-coded risers and brake handles, making ground handling especially intuitive. The wing launches effortlessly and is exceptionally easy to fly, thanks to its balanced pitch and roll behaviour.

Safe Total confidence

With features like extended brake travel, the ALPHA series offers exceptional safety margins. This allows you to gradually explore new manoeuvres and tackle challenges with ease. Thanks to its high turbulence absorption, you’ll enjoy a smooth and steady flight every time.

Fun Joy of flying

The responsive, dynamic handling combined with high passive safety makes flying pure fun. With the versatile ALPHA DLS, you can embark on Hike & Fly adventures and travel with confidence and ease.

TECHNOLOGY & FEATURES

Light And Versatile

LIGHT AND VERSATILE

DLS combines structural innovations with a unique material mix. This development philosophy includes a range of small yet crucial measures that collectively result in a significant weight reduction. Robustness and durability remain at the consistently high standard you expect.

Maximum Passive Safety

MAXIMUM PASSIVE SAFETY

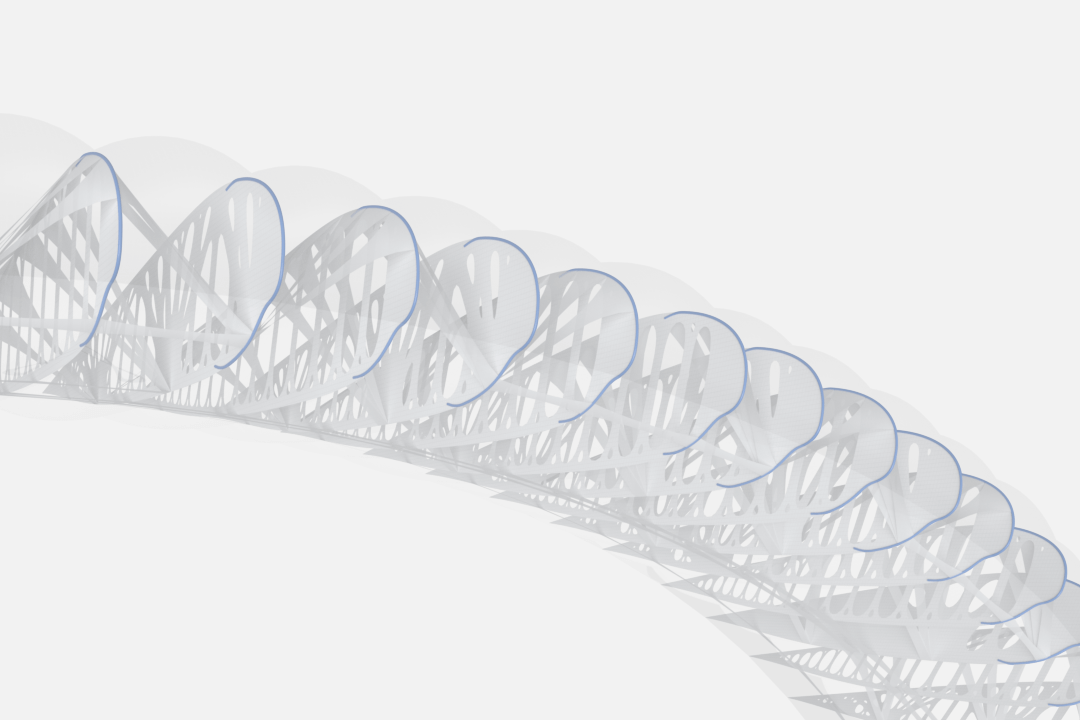

The stall occurs very late and is clearly and noticeably announced – thanks to extremely long brake travel and progressively increasing brake pressure. This exceptionally forgiving behavior is the result of Air Scoop technology at the leading edge, semi-circular cell openings, and an optimized planform.

Enhanced Performance

ENHANCED PERFORMANCE

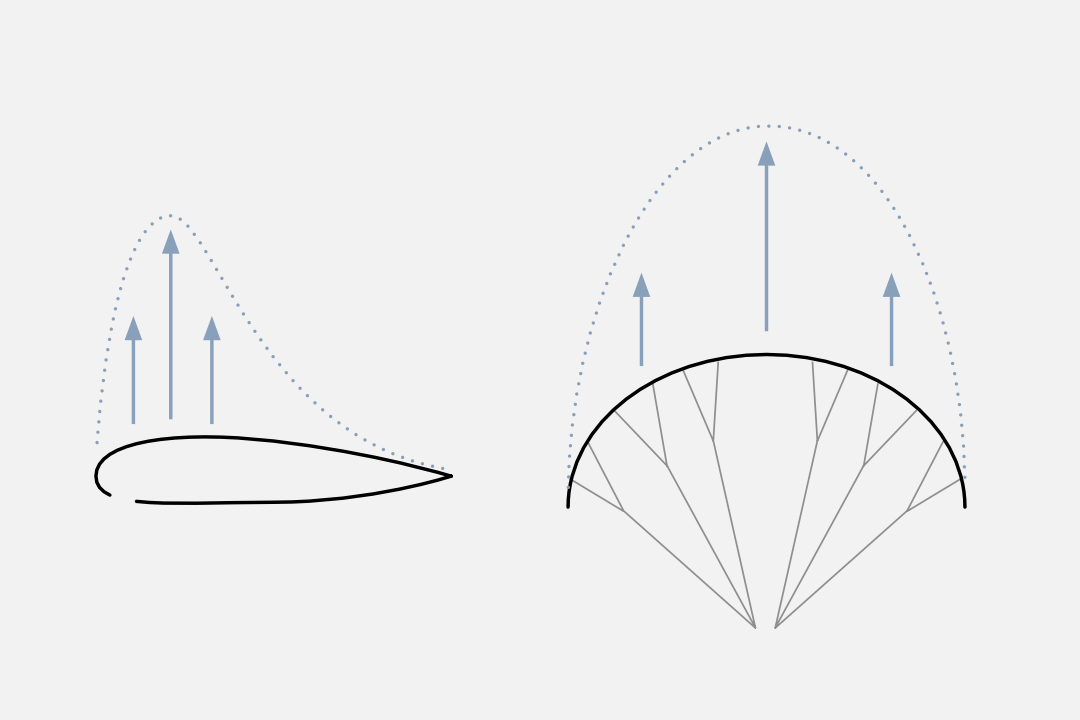

The new profile gives the ALPHA series a performance boost of up to 15 %. With improved pressure distribution along the chord, it delivers optimal pitch behaviour and increased efficiency. The DLS version takes this even further, achieving even better glide performance through further drag reduction compared to the classic version.

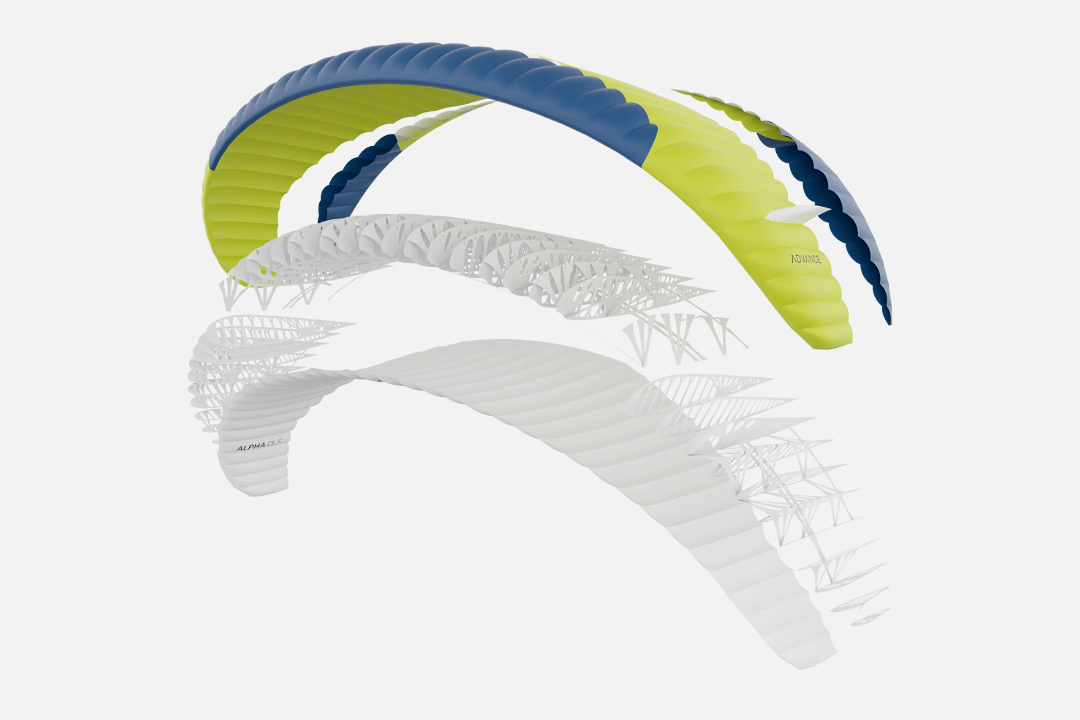

Tailored High-End Material Mix

TAILORED HIGH-END MATERIAL MIX

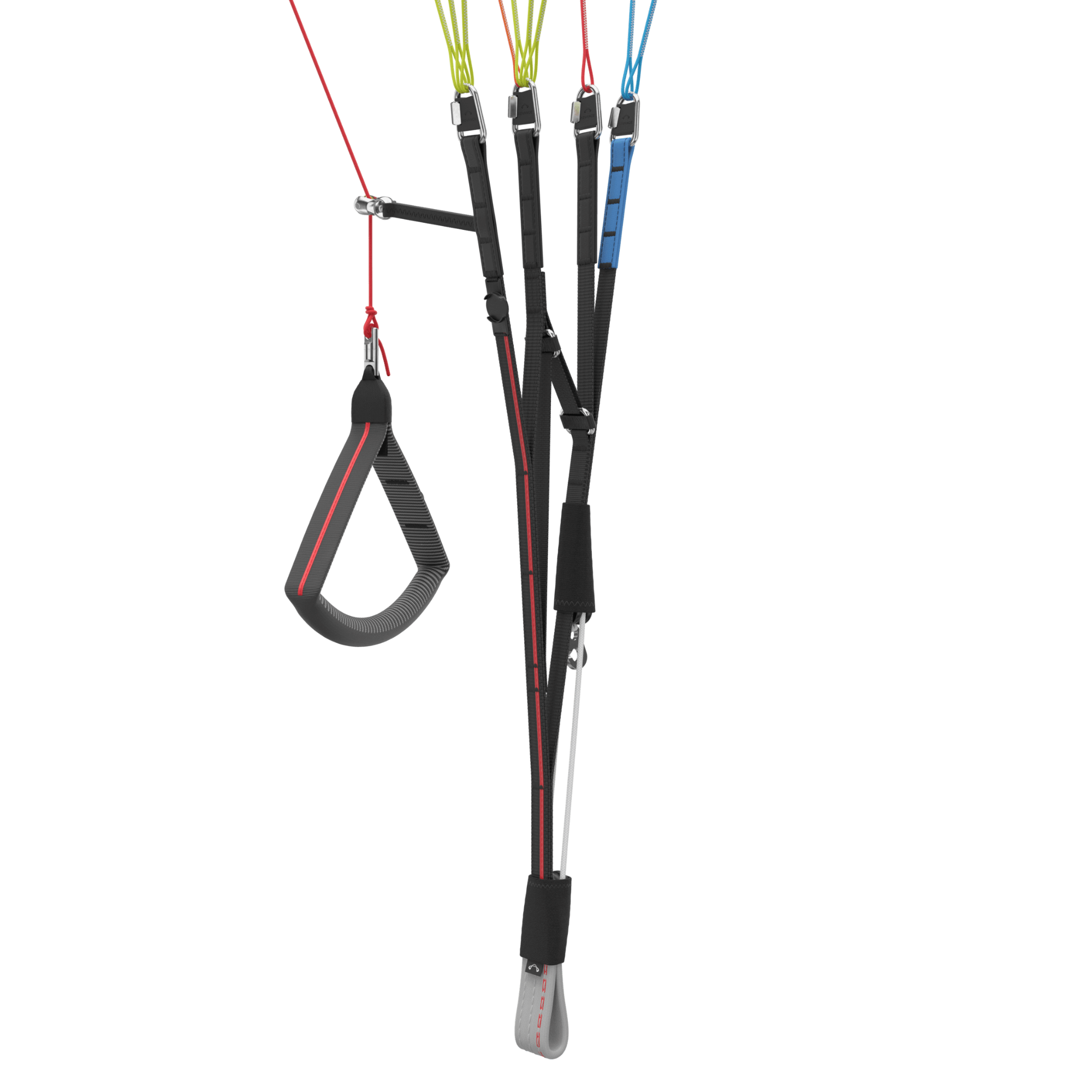

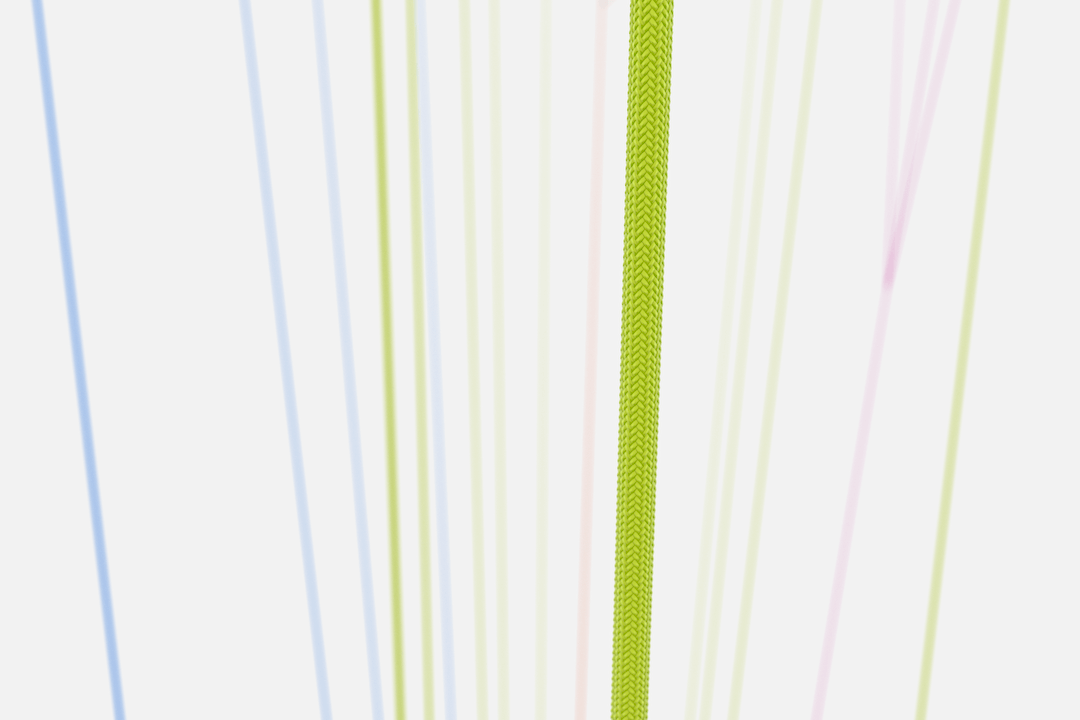

The ALPHA DLS uses slimmer risers and high-quality unsheathed ProDry lines in the gallery. The different coloured lines are extremely stable in length, extremely water-repellent and offer above-average tear resistance even after long periods of use.

Alpha 8 Dls Featurepointer

Technical Data

ALPHA DLS 22 24 26 28 31
Flat surface m2 21.57 23.66 25.86 28.36 31.85
Projected surface m2 18.63 20.44 22.13 24.26 27.25
Certified takeoff weight kg 50-80 60-95 70-110 85-125 100-145
Ideal weight range kg 58-68 68-80 80-95 95-110 110-130
Increased takeoff weight kg 68-80 80-95 95-110 110-125 130-145
Glider weight kg 3.60 3.85 4.15 4.50 4.95
Span m 10.26 10.75 11.23 11.76 12.47
Projected span m 8.25 8.64 8.93 9.35 9.91
Aspect ratio 4.8 4.8 4.8 4.8 4.8
Projected aspect ratio 3.7 3.7 3.7 3.7 3.7
Max. chord m 2.59 2.71 2.83 2.97 3.14
Number of cells 38 38 38 38 38
Certification EN/LTF A EN/LTF A EN/LTF A EN/LTF A EN/LTF A

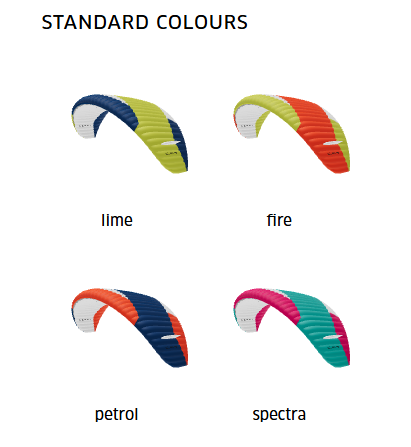

Colours

Materials

Leading edge Skytex 38 universal
Upper surface Skytex 38 universal
Lower surface Skytex 27 classic II
Designstripe Skytex 32 universal
Profiles Skytex 40 hard finish, Skytex 32 hard finish
Unsuspended profiles Skytex 40 hard finish, Skytex 32 hard finish
Diagonals Skytex 40 hard finish, Skytex 32 hard finish
Tension tapes Skytex 40 hard finish, Skytex 32 hard finish
Main lines A-7343-340, -280, -230, -190, -140
Gallery lines A-8001-190, -130, -090, -070, -050
Brake lines DSL 070, DFL 115
Steering lines A-7850-240
Stabilo A-7343-140

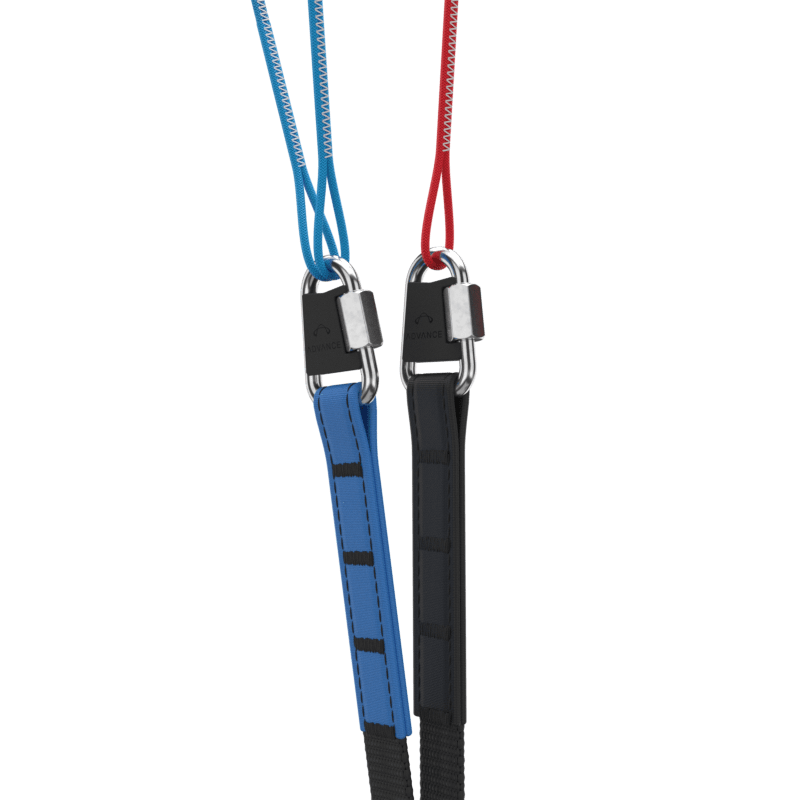

Risers PES/Technora 12mm
Quick links MR Delta 3.5mm / S12

Scope of Delivery

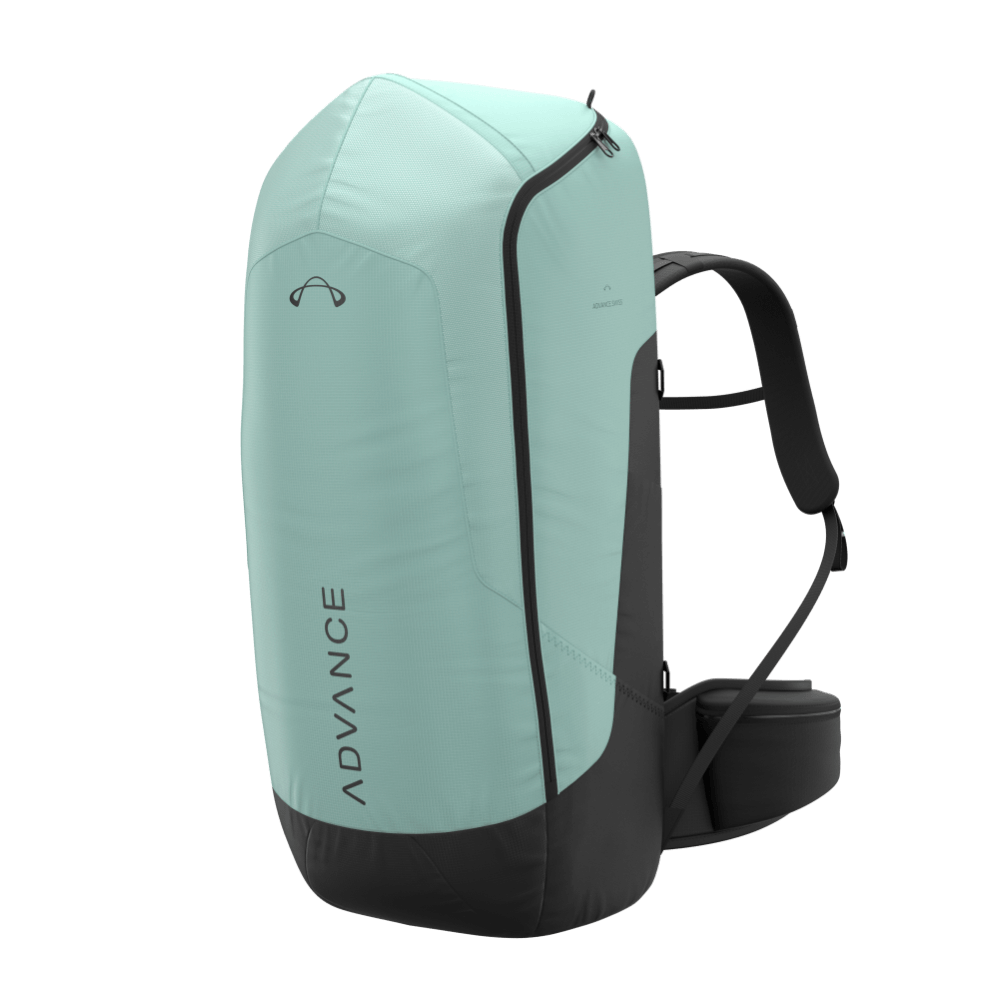

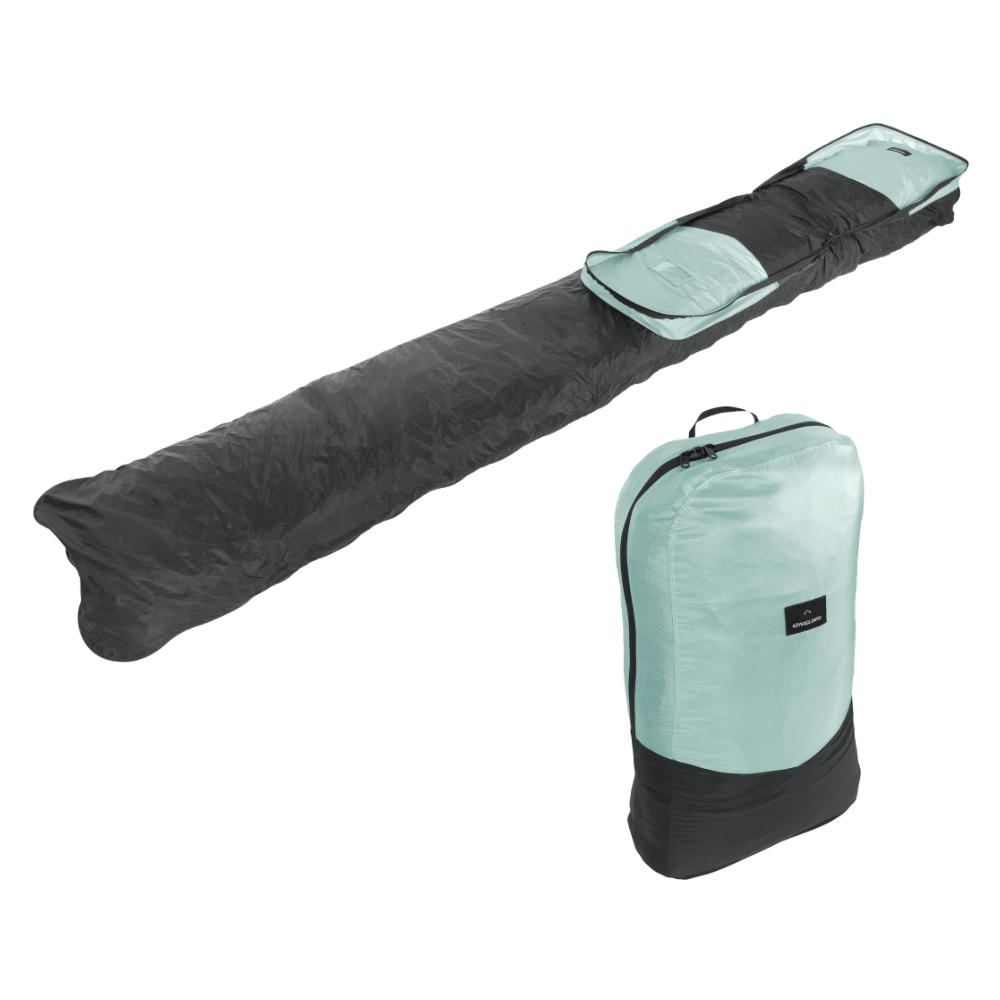

Compressbag Dls
COMPRESSBAG DLS

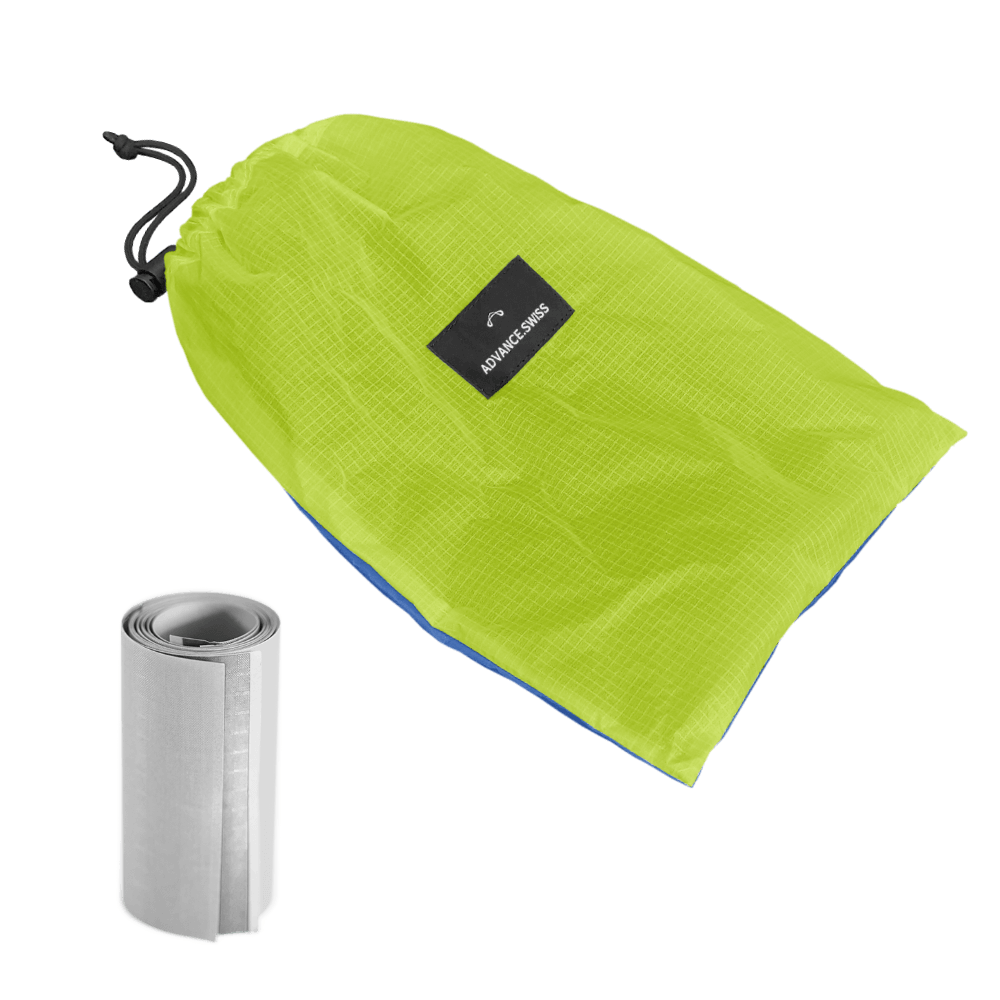

Repair Kit
Repair Kit

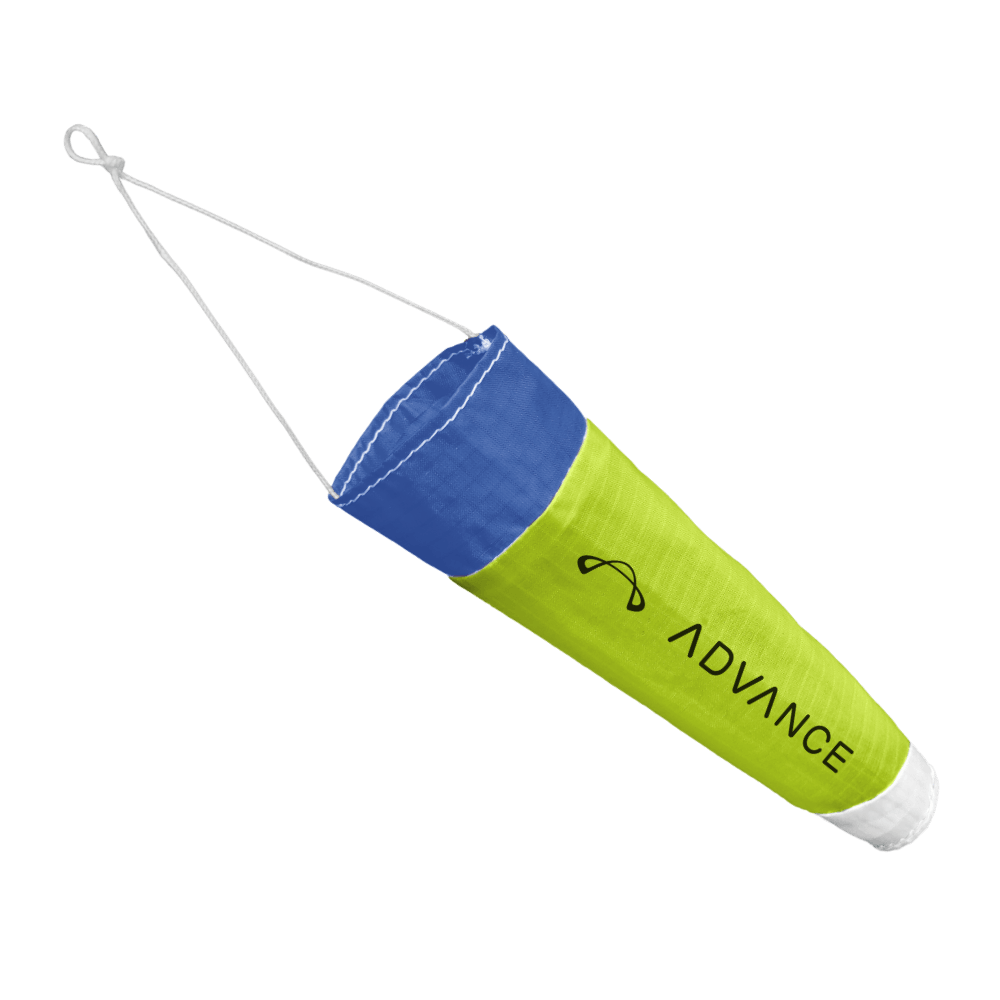

Mini Windsock
Mini Windsock


Getting Started Booklet
Getting Started Booklet



Additional information
Weight10 lbs
Size
Color
