SWING MIURA RS

$3,850.00

In stock

Clear
SKU: N/A Categories: ,

SWING MIURA RS The best paraglider is whichever one is best suited to the particular pilot.

We developed the MIURA RS for ambitious pilots who are looking for a glider with excellent properties in thermal flight, which they can use to perfect their skills over a number of years.

Already in the development phase the XC-Allrounder became the absolute favorite glider of our test pilots with its direct and precise handling.

The challenge we faced when developing the MIURA RS was to create a glider with enough performance for ambitious beginners to be able to get into thermalling and cross-country flying, but which still had the feeling of safety and comfort during flight found in a basic intermediate wing. As soon as we had tested the first prototypes, we knew that the MIURA RS was more than just an ordinary basic intermediate glider. Performance and handling reveal B category genes but, with moderate use of the speed system, its behavior in terms of safety is consistent with that of a glider in the A category. For this reason we decided to have the MIURA RS certified twice: firstly as an A category glider suitable for training, and secondly as a basic intermediate with its benefits of the extended speed range. This is possible by adding or unmounting the speed limiter, which pilots can do themselves in just a few seconds.

If you decide to buy the MIURARS, you don’t have to choose one or the other!

  • Speed-Limiter combines the A- and B-Class in one glider
  • Balanced handling and excellent climbing performance
  • RAST – more control and comfort
  • DGAC registered
  • suitable for training
  • versatile
  • comfortable
  • limiter, which pilots can do themselves in just a few seconds.

If you decide to buy the MIURARS, you don’t have to choose one or the other!

  • Speed-Limiter combines the A- and B-Class in one glider
  • Balanced handling and excellent climbing performance
  • RAST – more control and comfort
  • DGAC registered
  • suitable for training
  • versatile
  • comfortable

Technical Data

MIURA RS
XS
S
SM
ML
L
XL
LTF Certification
CEN Certification
B (A)
B (A)
B (A)
B (A)
B (A)
A
DGAC Certification
Permissible weight range (kg) min./max. incl. Equipment
55-75
70-90
80-100
90-110
105-125
115-145
Recommended weight range
(kg) Min/Max incl. Equipment
60-75
75-90
88-100
98-110
108-125
120-135
Permissible weight range (kg) Min/max motorized incl. equipment
70-100
90-115
100-125
110-140
125-155
cells
48
48
48
48
48
48
wing area (m²)
22,0
24,4
26
27,5
30,9
projected wing area (m²)
19,2
21,4
22,7
24,0
27,0
wing span (m)
10,6
11,2
11,6
11,9
12,6
projected wing span (m)
8,6
9,1
9,4
9,7
10,3
aspect ratio
5,15
5,15
5,15
5,15
5,15
projected aspect ratio
3,9
3,9
3,9
3,9
3,9
glider weight (kg)
4,3
4,6
4,8
5,1
5,5
* in process
** The performance data depend on the wing loading, the atmospheric conditions and the harness used, as well as the pilot position.

Colors

Available in 4 colors

Tangerine

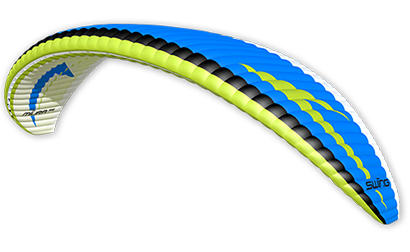

Sky Blue

Flame

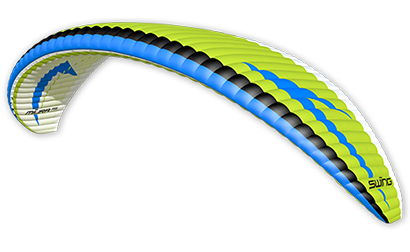

Dream

Technology & Features

Speed-Limiter

It takes just a few quick steps to limit speed system travel, turning the MIURARS into an A category glider that is suitable for learners. When training has been completed, it is just as easy to remove the limiter and enjoy the performance benefits of the B category. Ball-bearing pulleys make even the longest glide stages a breeze.

RAST

The well-proven RAST-System is of course part of the MIURARS inner structure. It gives the MIURARS the addition of stability and control and is responsible for its unique and comfortable RAST-feeling during takeoff and flight. The patented bulkhead partition with its valves helps to prevent big collapses and deformations, hence reducing the risk of uncontrolled flight patterns.

Mini ribs with 3D shaping and internal stitching

Ballooning on the trailing edge has a considerable influence on a paraglider’s control pressure and handling. That’s why, with the TWIN RS 2, ballooning in this area was reduced to a minimum using 3D shaping, in addition to the tried and tested mini ribs. The trick here is that the mini ribs have internal stitching on the top surface so that none of the threads can get caught up on the ground and pulled out, even when launching in difficult terrain.

Nitinol foils

Nitinol is a high-strength, temperature- and corrosion-resistant shape memory alloy. The name Nitinol is an acronym for Nickel Titanium Naval Ordnance Laboratory. This material is well-known in medical technology, and for a long time Swing has been using it as leading edge reinforcement in paraglider design, one of the first paraglider manufacturers to do so. For the MIURARS, the Nitinol reinforcements are inserted into nylon tubes. This meant that the cross-sectional area (and thus the contact area for the top surface material) could be increased without having to forego the positive features of the memory alloy (bend-resistance, length and dimensional stability).

Colored Riser Connections

To avoid any mistakes when clipping in, the attachment loops for the MIURARS have colour identification. This lets you see at a glance whether the risers are correctly attached to the harness.

Who should fly the MIURA RS?

Ambitious beginners wanting to use the performance and handling of an intermediate glider in their training, but who still want to keep the passive safety of the A category, will immediately feel at ease with the MIURARS. The balanced damping and optimised RAST system will give you the confidence to climb higher than ever before, even in rough conditions. And on the subject of climbing, even its simple launch behaviour underlines its commitment to transport you with ease into the sky. This means the MIURARS is ideal as your future-proof first paraglider. Pilots coming from a higher EN rating and those who don’t fly very often will also appreciate the glider’s accessible performance.

With 48 cells and its efficient speed system, it offers climb and glide performance that is outstanding in this class, and which will still put a smile on your face even after years. We have also refined its handling so that you will always be in full control of the situation even in turbulent thermals. And if conditions should ever become rougher than was expected, RAST will help you maintain pressure in the canopy.



List of materials

Bezeichnung Bestell Nr. Werkstoff Abmessung Oberfläche Hersteller
Fangleinen (Stamm) 7343-230/ -190 Tecnora ø 1,7mm/ 1,5mm ummantelt Edelrid
Fangleinen (1.Gabel) 7343-140 Tecnora ø 1,3mm ummantelt Edelrid
Fangleinen (2.Gabel) DSL 070 Dyneema ø 0,9mm unummantelt Liros
Tuch Obersegel 9017 E25 / STA 15 Nylon 38 g/m² – 31g/m² beschichtet Porcher Sport / Techfiber Services, Inc Japan
Tuch Untersegel STA 15 Nylon 31 g/m² beschichtet Techfiber Services, Inc Japan
Tuch Profile WT 2042 Nylon 32 g/m² beschichtet Techtex
Gurtband 12mm BLK Aramid / Polyester 12 mm / 2 mm Cousin
Profilverstärkung Support rod Nitinol / Nylon ø 1,0 mm / 0,8mm, tubecover Techtex
Bremsleinen DFSL 200 / DSL 70 Dyneema ø 2,0 / 0,9 mm ummantelt Liros

Downloads

MIURA RS
DE
EN
Brochure / Flyer
Manual
Maintenance and Service Book
Inspection information
Testreports

Scope of delivery

  • Swing MIURA RS
  • SWING standard pack rucksack (90, 130 or 200 liters), or fast packing bag.
    (On request delivery without pack sack possible. Please state when ordering).
  • inner-packsack
  • Compression Strap
  • Riserbag
  • Free*Spee Beschleuniger
  • Repair Cloth (transparent white)
  • Manual

Additional information

Weight 5 lbs
Size

, , , , ,

Color

, , ,
