Ozone Arc Speed Wing
$2,400.00
Ozone Arc Speed Wing Steep & Stable Big Mountain Wing
The Ozone Arc Speed Wing is optimized for big-mountain speedriding. It is capable of the steepest descent angles of any wing in our range. Its shortened line length and long trim range and long brake travel all enable highly dynamic slope riding, with the ability to rapidly take-flight.
- Optimized for big-mountain riding
- Highly stable at low angles of attack and steep lines
- Short line length, long trim range
- Rapid, reliable inflations on launch
- Capable and comfortable in foot-launch applications
- Light but durable design, with sheathed lines
Specifications
| Sizes | 6.5 | 8 | 10 | 12 | 14 |
|---|---|---|---|---|---|
| Number of cells | 27 | 27 | 27 | 27 | 27 |
| Projected area (m2) | 5.8 | 7.1 | 8.9 | 10.6 | 12.4 |
| Flat Area (m^2) | 6.5 | 8 | 10 | 12 | 14 |
| Projected Span (m) | 4.01 | 4.45 | 4.98 | 5.45 | 5.89 |
| Flat Span (m) | 4.77 | 5.29 | 5.92 | 6.48 | 7 |
| Projected Aspect Ratio | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Flat Aspect Ratio | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Root Chord (m) | 1.64 | 1.82 | 2.03 | 2.23 | 2.41 |
| Glider Weight (kg) | * | 1.93 | 2.16 | 2.45 | 2.7 |
| Load Test | EN-926 | EN-926 | EN-926 | EN-926 | EN-926 |
| In-flight Weight Range (kg) | 50-95 | 50-95 | 50-97 | 50-97 | 50-97 |
| EUR RRP | €2,400.00 (including VAT) | €2,400.00 (including VAT) | €2,400.00 (including VAT) | €2,400.00 (including VAT) | €2,400.00 (including VAT) |
| U.S. RRP | $2,400.00 | $2,400.00 | $2,400.00 | $2,400.00 | $2,400.00 |
* Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.
Colour Options
Inflation & Launch
The Arc launches rapidly. It has the predictable and dependable launch behavior that is critical for dropping into steep big mountain lines. It inflates quickly even from a compressed layout.

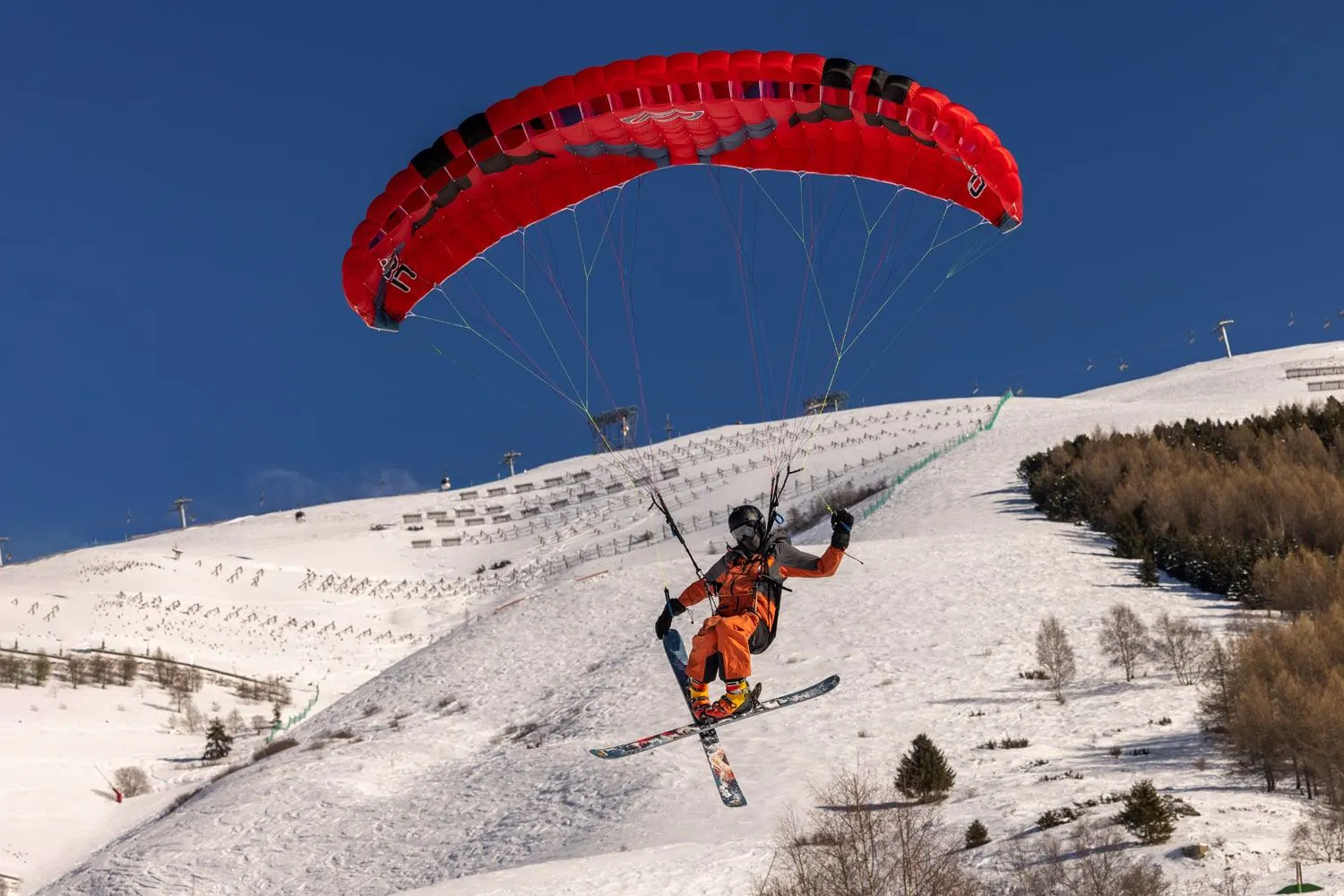

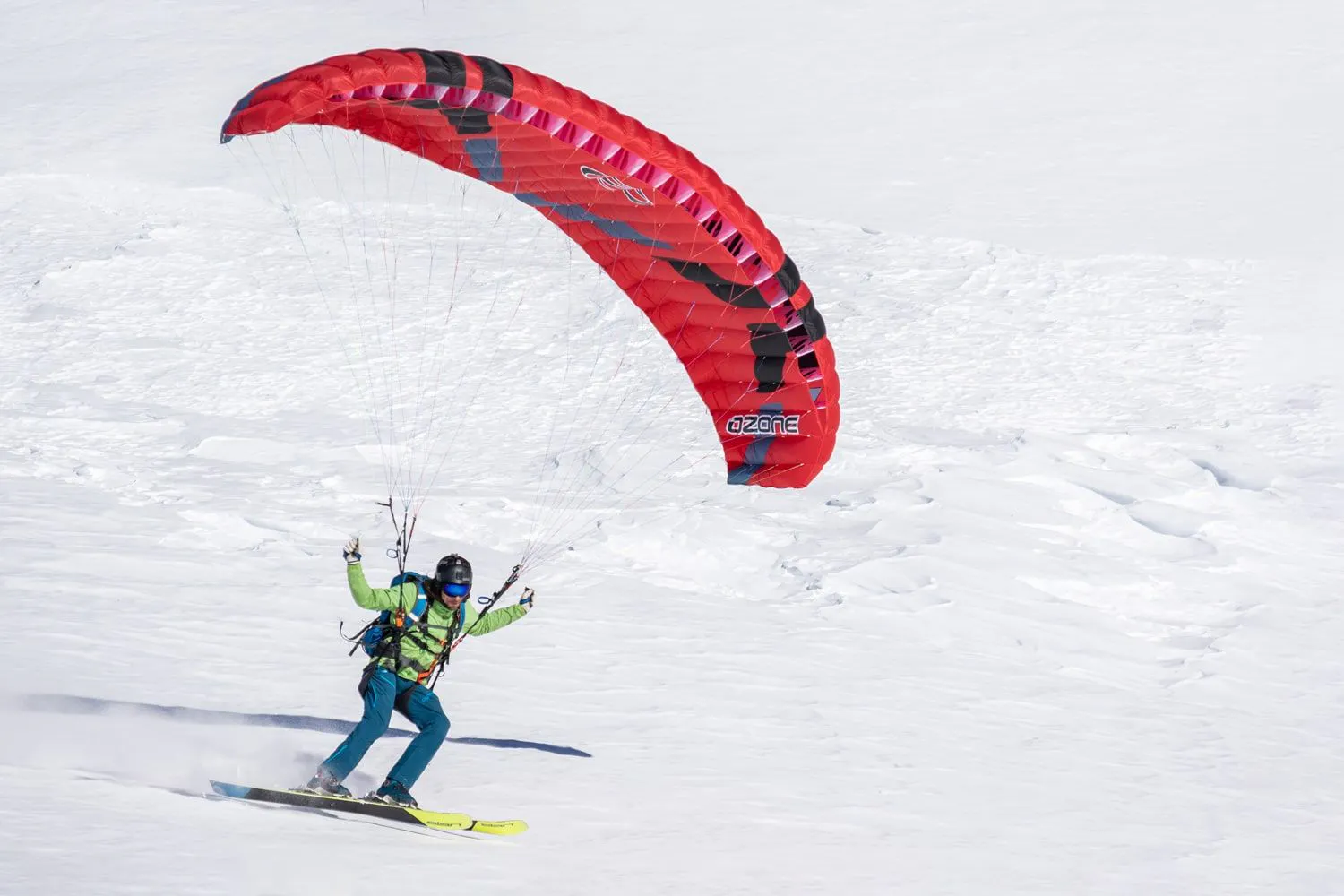

On Snow
The Arc’s brake range is very long, longer than almost any speed wing we have flown. Its deep brake behavior allows you to make powerful inputs without stalling or over-controlling the wing. This same characteristic makes rapid disconnects and re-landings easy on steep lines, and enables freestyle maneuvers such as riding switch and taking grabs accessible earlier in a pilot’s skill-progression.
Trim Range & Glide
The Arc has the longest trim-range of any of Ozone Speedwing. With trims fully released, its glide is very steep. Because the trim range is so extensive, it ships with the final 3cm of trim-range stitched closed. It is up to the pilot to cut the stitching to access the full trim range.With trims pulled in, the Arc’s max glide is impressive for a ski-specific wing – it is comparable to the Dragonfly series.

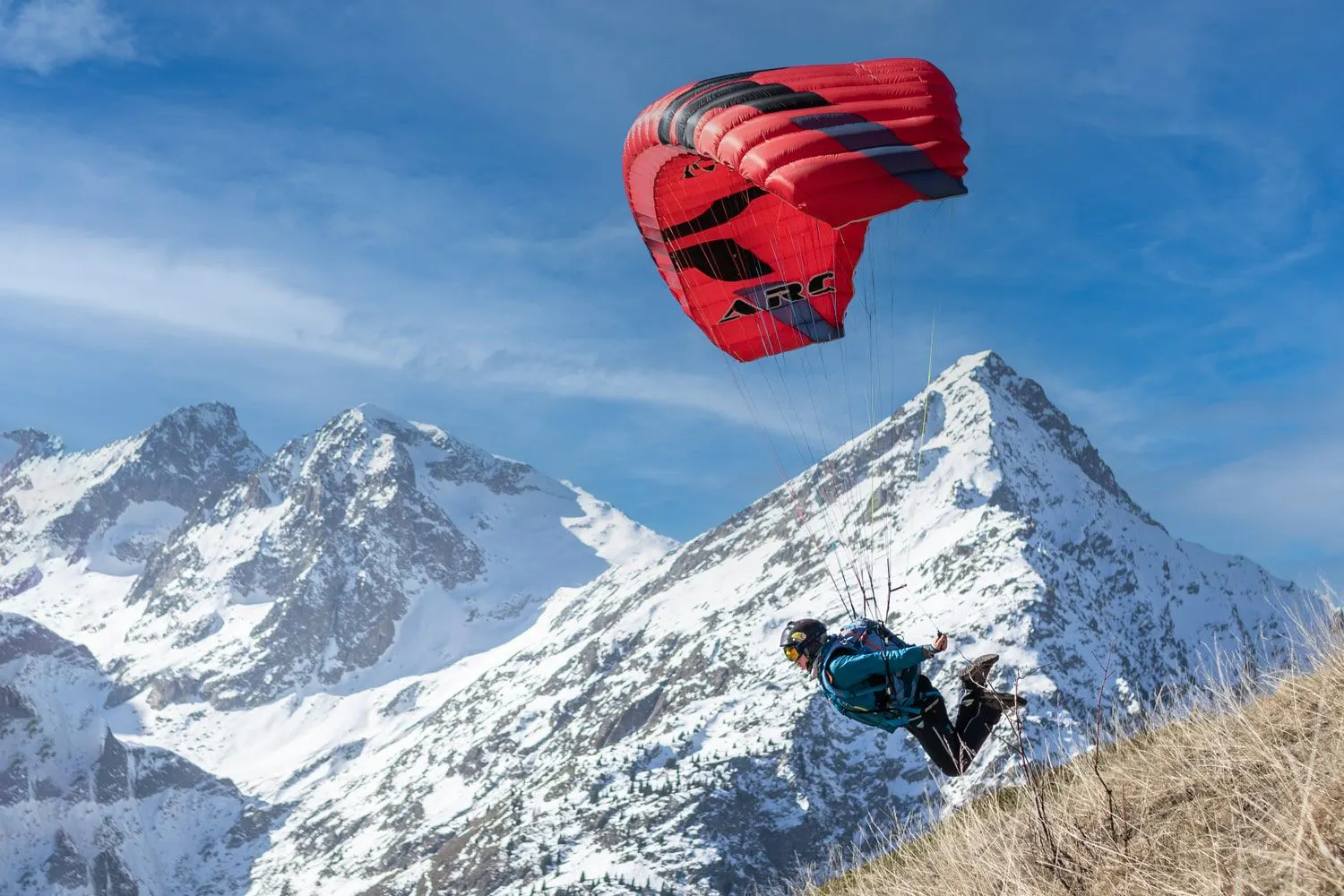

Foot-launch Flights
Although designed with the Speedrider in mind, the Arc’s significant trims-in launch capability make it a fun, safe, and stable wing for foot-launched speed flying. Many pilots prefer the feel of both the lighter weight fabric and risers, as well as the shorter line-lengths for intermediate-to-advanced level classic speedflying.
Materials & Design
A lighter system means lower sail inertia which means better behavior when navigating technical terrain at low speed with the wing unloaded due to the pilot riding on the surface. Light risers and fabric help the canopy to remain overhead at low airspeeds. Sheathed lines provide durability and a new neoprene brake-handle design is optimized for gloves, with classic snaps rather than magnets.
The Pilot
The Arc serves a broad range of beginner to advanced speedriding pilots who want a wing capable of true speed riding. It is recommended for those with prior piloting paragliding or speed riding experience. It is available in three sizes: 12m / 10m / 8m / 6.5m
Materials
- Top Surface Cloth: Dominico N20D
- Bottom Surface Cloth: Dominico N20D
- Rib cloth: Dominico 30D (hard)
- Upper lines: Liros DSL 70
- Mid lines: Liros DSL140
- Lower Lines: Edelrid 6843-240/200
